The Construction Set

Digital PDF

Delivery: Immediate Digital Download (PDF), printable at full architectural scale.

The Full Construction Set contains the complete architectural drawings required for permitting and construction of the structure. Drawings are prepared at 1/4" scale and organized to provide builders and contractors with clear guidance throughout the building process.

The Construction Set includes:

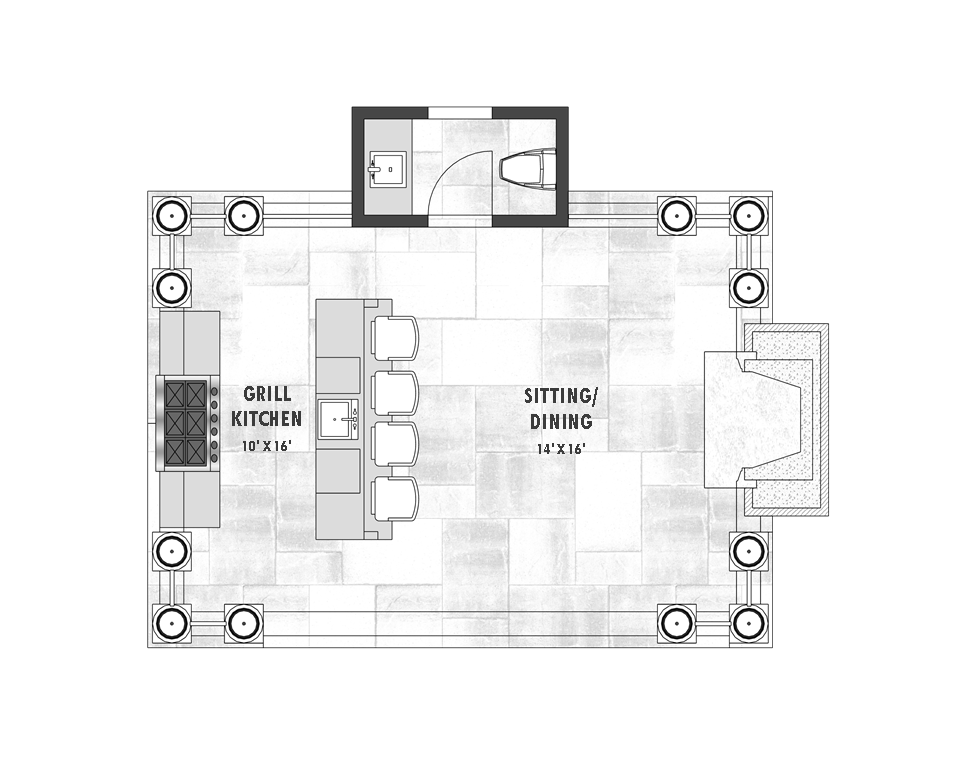

Floor Plans
Floor Plans prepared at 1/4" scale, including room layouts, wall dimensions.

Roof Plan
A detailed 1/4" scale roof plan showing roof form, ridges, valleys, and slopes.

Exterior Elevations
All sides of the structure illustrated at 1/4" scale, showing architectural detailing, materials, and proportions.

Building Sections & Exterior Details
Key 1/4" scale building sections and exterior construction details

Electrical Plan
A 1/4" scale switch and outlet plan indicating the general placement of electrical switches, outlets, and fixtures.

Slab Foundation Plan

All foundation plans are prepared at 1/4" scale.
